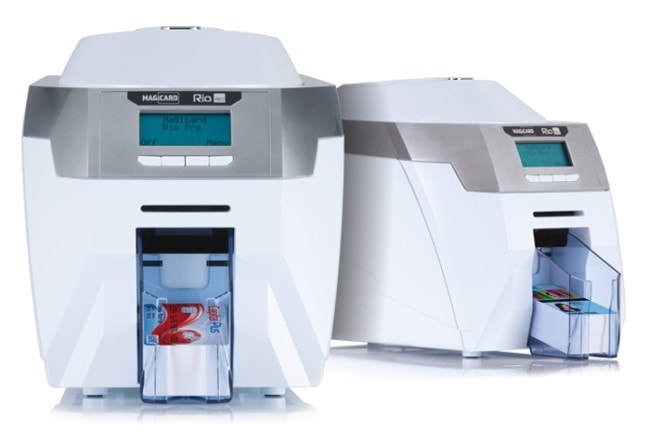

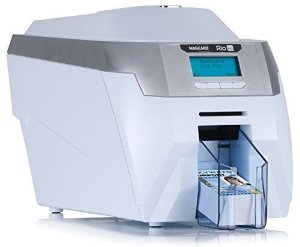

Magicard RioPro金属结构会议证卡打印机

类型

描述

安全技术

A HoloKote security watermark can be printed across the card surface. When used with HoloPatch® cards, one area of the HoloKote watermark is highlighted as a high visibility security seal. A choice of 4 standard HoloKote designs and 1 standard HoloKote Flex design are selectable from the printer driver. For added security, the Custom HoloKote option (ordered separately) enables customisation of the watermark to an individual logo or security design.

质量保证

Three years UltraCoverPlus warranty which includes full printhead coverage and free loaner service - North America, EU and other selected countries. Elsewhere 12 months limited warranty.

打印方式

Color dye sublimation and monochrome thermal transfer.

打印机接口

USB and Ethernet both fitted as standard.

打印速度

*Colour standard mode: 31 seconds, *Colour fast mode: 23 seconds, *Monochrome resin: 6 seconds (*single-sided card).

卡盒容量

100-card feeder, 70-card stacker.

打印机驱动

MacOSX, Windows 2000 Professional (SP4), XP, Vista, Windows 7, Windows 8.1, Windows Server 2003 R2 SP2, Server 2008, Server 2012 (Windows 8 Server) Note: 32bit & 64bit Compatibility.

打印机尺寸

470mm L x 220mm W x 250mm H (18.5" L x 8.6" W x 9.8" H) including feeder and stacker.

打印机重量

4.9kg (10.8 lbs).

可使用的卡片厚度

0.51mm to 1.27mm (0.020” to 0.050”).

可使用的卡片类型

ISO PVC blank, magnetic stripe, self-adhesive, printable type proximity and smart cards, HoloPatch cards.

可使用的卡片尺寸

ISO standard CR80 85.6mm x 54mm or 3.375" x 2.125", and CR79 83.9mm x 51mm or 3.303" x 2.051".

工作环境

Sheltered office environment 10°C to 30°C (50°F to 85°F).

电源

External power supply 100-240V 50-60Hz autoranging.

接触卡编码器

可选接触芯片编码装置.

单面再转印打印机.产品编号

Prima 401

自动双面再转印打印机.产品编号

Prima 402

Double-sided upgrade

Upgrade the single-sided Rio Pro to the Rio Pro Duo.

Custom HoloKote

Kit contains a CD to install the data and a Custom HoloKote card that fits into your printer.

Encoding options

Magnetic stripe card encoding, smart card encoding. (Mifare, Desfire, iClass, contact chip and combi). Other smart card encoders also available.

3652-0001

Magicard Rio Pro ID card printer.

3652-0002

Magicard Rio Pro ID card printer with magnetic stripe encoder.

3652-0003

Magicard Rio Pro ID card printer with combi smart card encoder (Mifare, Desfire, iClass & contact chip).

3652-0004

Magicard Rio Pro ID card printer with combi smart card encoder (Mifare, Desfire, iClass & contact chip) & magnetic stripe encoder.

3652-0021

Magicard Rio Pro Duo ID card printer.

3652-0022

Magicard Rio Pro Duo ID card printer with magnetic stripe encoder.

3652-0023

Magicard Rio Pro Duo ID card printer with combi smart card encoder (Mifare, Desfire, iClass & contact chip).

3652-0024

Magicard Rio Pro Duo ID card printer with combi smart card encoder (Mifare, Desfire, iClass & contact chip) & magnetic stripe encoder.

打印方式

彩色热升华和单色热转印

打印速度

彩色高清模式：31秒/张；*彩色高速模式：23秒/张；*彩色半格高速模式：18秒/张；*单色：6秒/张

基本参数

打印方式

彩色热升华和单色热转印

打印速度

彩色高清模式：31秒/张；*彩色高速模式：23秒/张；*彩色半格高速模式：18秒/张；*单色：6秒/张

卡片类型

符合ISO标准的PVC白卡，磁条卡，智能卡，胶贴卡和HoloPatch卡

卡片厚度

0.51mm-1.27mm

其他参数

接口类型

标配USB和以太网接口

电力规格

工作电压(V)

100-240V

电源频率(Hz)

50-60Hz

外观参数

尺寸(mm)

470×220×250mm

重量(kg)

4.9kg

环境参数

工作湿度

办公室环境10-30度
